Wood machine nesting carving cutting woodworking atc cnc router for wooden furniture

Wood machine nesting carving cutting woodworking atc cnc router for wooden furniture

Categories: ,

$22,650.00

Specifications
Compare

Description

Buy Wood machine nesting carving cutting woodworking atc cnc router for wooden furniture – ONLINE



Description
Nesting cnc router
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
6000 – 24000 rpm
Positioning Accuracy (mm):
0.01 mm
No. of Spindles:
Single
Working Table Size(mm):
1220×2400
Machine Type:
CNC Router
Travel (X Axis)(mm):
1220 mm
Travel (Y Axis)(mm):
2440 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
9.6
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
QUICK
Voltage:
AC380V/50HZ/3P
Dimension(L*W*H):
3800x2200x2220mm
Certification:
CE
Power (kW):
11
Weight (KG):
1200
Control System Brand:
Syntec
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
High-accuracy
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Gear, Engine, Gearbox
Working area:
1220mmx2440mmx200mm
Control system:
Syntec 6MB
Spindle:
9.6kw Italy HSD Spindle
Table Surface:
T-Slot + Vacuum Table
Inverter:
11kw Fuling Inverter
Motor:
850W YASKAWA servo motor
Transmission:
Rack Pinion
Software:
Artcam / Type3 Software
Application:
Wood Working
Product name:
Wood machine nesting carving cutting woodworking atc cnc router
Wood machine nesting carving cutting woodworking atc cnc router for wooden furniture

Product Description

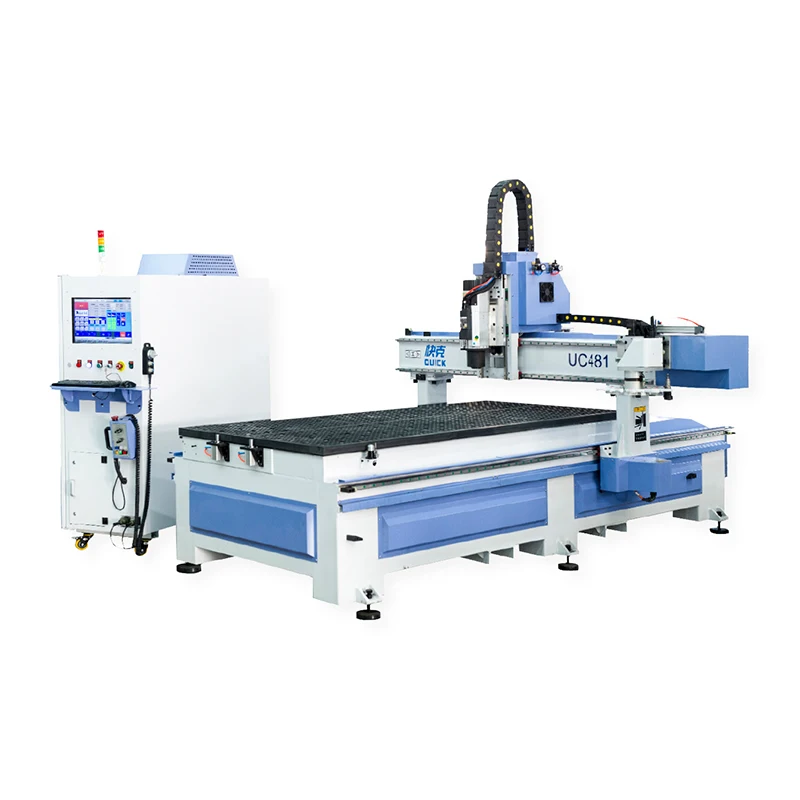

ATC UC-481 professional wood cnc router for furniture 1224 is a heavy-duty circular type auto tool changing machine center with excellent configurations. Boring head and auto loading & unloading parts are optional.  The solid machine structure with heat treatment ensures the stability even in high intensity working load with the fastest efficiency and without tiny vibration.
ATC 1224 cnc engraving machine router automatic tool changer UC-481
Model
UC-481
X-Y-Z axis working area
1220*2440*200mm
Machine size
3500*2200*2200mm
Repositioning resolution
0.02mm
X-Y movement
Rack and pinion, gear drive
Z movement
Ball screw drive
Guide
Linear 25mm square
Spindle power
9.6KW Italy HSD(ISO30, fan cooling ATC)
Spindle speed
24000rpm
Inverter power
11KW
Tool magazine
10pcs tools,carousel type
Drive motors
Servo/Japan
Working voltage
AC380V/50-60Hz, 3-phase
Command code
G code
Computer interface
USB 2.0
Collet
ER32-3.175mm, 6mm, 12.7mm
Software
Artcam & Alphacam Software/UK
Controls
SYNTEC-6MB
Standard equipment included
1.Auto tool length compensation device
2.Auto oil lubrication system
3.Dust hood
4.Double layer vacuum table with the 5.5Kw vacuum pump
5.Tool shanks
6.Positioning pins
Optional
boring head
Vacuum cleaner
4 axis for spindle

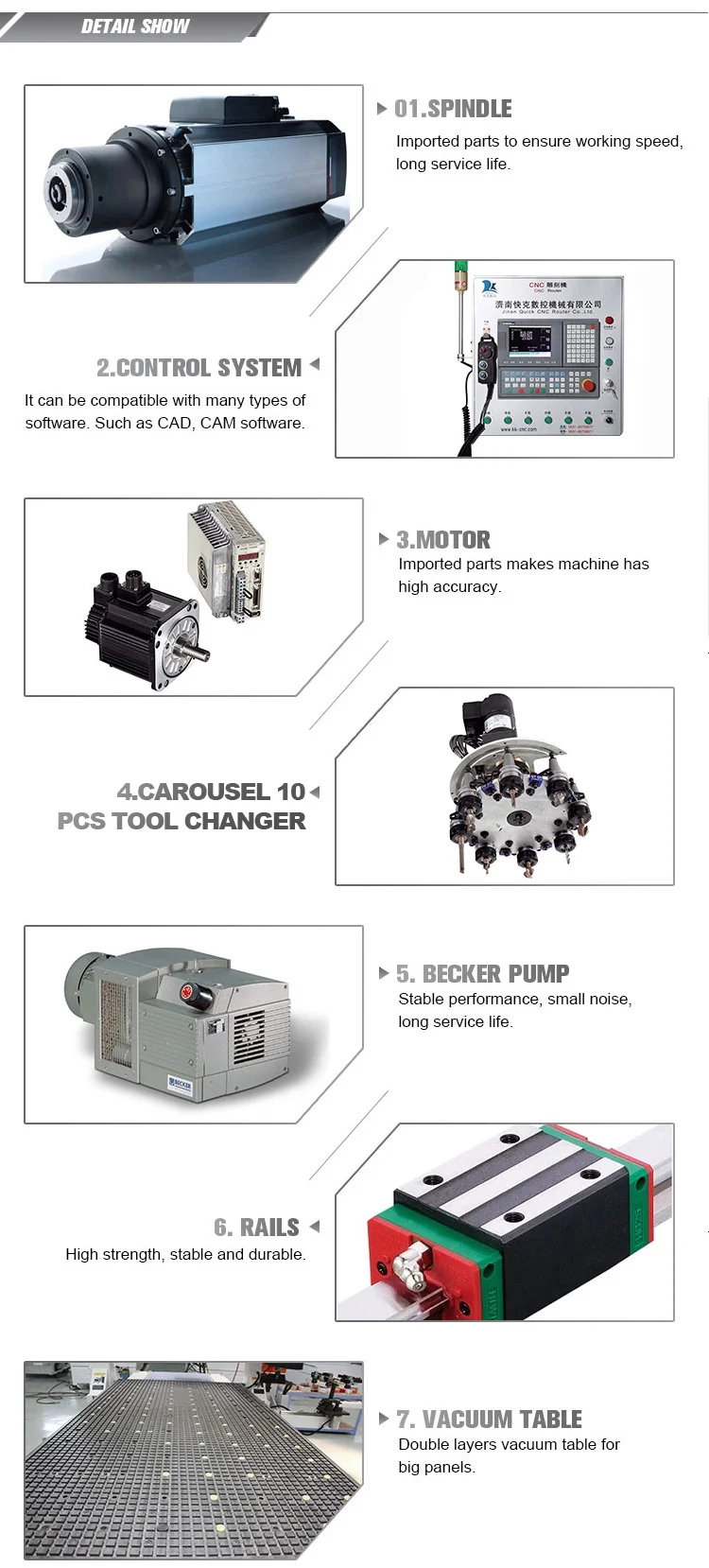

Machine details
Nesting cnc router
Sample
Nesting cnc router
1.Furniture Decoration Industry:A large area flat plate engraving,wood,panel furniture carving,wood art murals,wood cabinet doors carving.
2.Wood Products Products Processing:Sewing machine table,electrical counter table,sports equipment.
3.Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.
4.Artwork:Photo Frame,jewelry box.

Packaging&Shipping

All the package are fumigation-free and extremely stable in case of any collision occurs during shipping on sea.We equipped with thin-film and waterproof film to against all unknown environment in containers. The loading of cargo usually takes at least 2 forklift to finish to ensure package keep well before delivery.
