HOT sale WEIFANG HH-1325 woodworking machinery CNC wood Router machine 1325 For Wood, Acrylic,Stone,metal

HOT sale WEIFANG HH-1325 woodworking machinery CNC wood Router machine 1325 For Wood, Acrylic,Stone,metal

Categories: ,

$1,700.00

Specifications

Condition:

New

Mark:

H&H

Type of sales:

In stock

Compare

Description

HOT sale WEIFANG HH-1325 woodworking machinery CNC wood Router machine 1325 For Wood, Acrylic,Stone,metal FOR SALE

CNC Router

Overview

Quick Details
Positioning Accuracy (mm):
0.02 mm
No. of Spindles:
Single
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.01 mm
CNC or Not:
CNC
Brand Name:
H&H
Voltage:
380V
Dimension(L*W*H):
1300mm*2500mm
Certification:
CE
Weight (KG):
1500
Control System Brand:
Siemens, DSP
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, Advertising Company
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Motor, Pump, Engine
Software:
NC Studio/Mach3/DSP
Spindle:
Air cooling spindle or water cooling spindle(optional)
X/Y axis Working area:
1300*2500mm
Z-Axis Working size:
200mm
Material:
wood, MDF, acrylic, storn, copper
Working table:
Vacuum T-slot table /Aluminum working table.
Max. working speed:
20m/min
Max travelling speed:
30m/min
Inverter:
Delta, Alpha,Fulin,,Yaskawa,etc
Power(W):
3.5KW
Model
HH-CR1325 CNC ROUTER
X/Y Axis Working Size
1300mm*2500mm(other sizes 1300*900mm,900*600mm,600*400m etc, available for options)
Z-Axis working Size
200mm(available for options)
Working Materials
Wood,MDF,Acrylic,stone, iron,alum,copper,bamboo,jade,etc.
Working Table
Vacuum T-slot table /Aluminum working table.
Max travelling speed
30m/min
Max working speed
20m/min

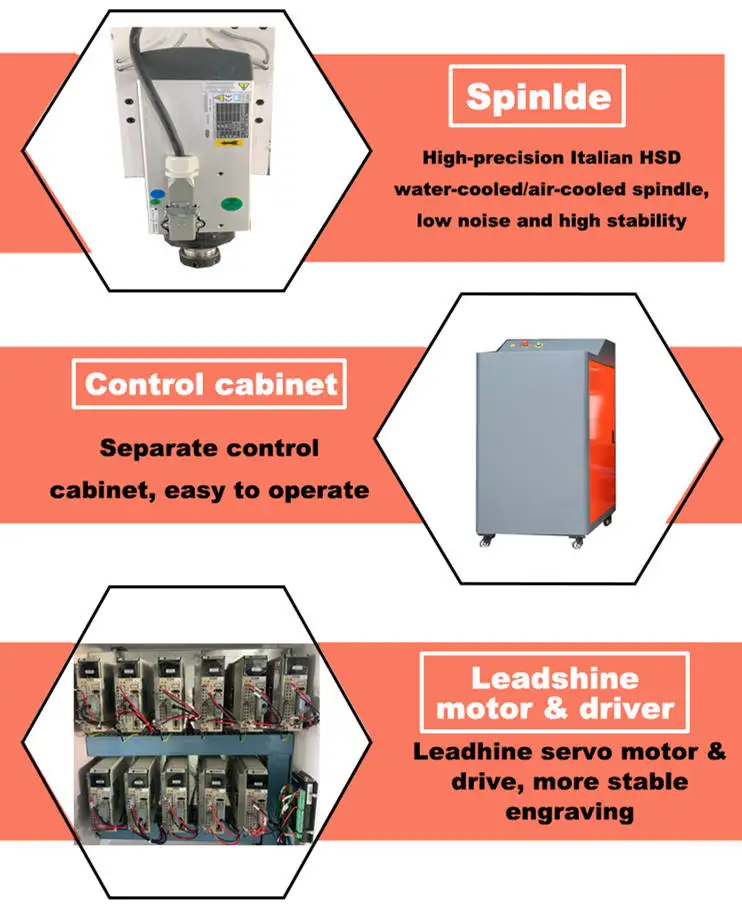

Spindle
Air cooling spindle or water cooling spindle(optional) Brand:Italy HSD,CS,other brands(optional)
Spindle Power
3kw,4.5kw,6kw,7.5kw,9kw,etc(optional)
Inverter
Delta, Alpha,Fulin,Panasonic,Yaskawa,etc
Working voltage
AC380V/220V
Guide Rail
HIWIN, PMI, PDF,NSK ,etc
Transmission
XY-High precision gear transmission Z-TBI BALL SCREW
Control systerm
DSP, NCstudio,Mach3,syntec(optional)
Application
Advertisement,crafts,moulding,seal, label,wood processing,etc.

1. Machine body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.

cnc router machine
cnc router machine
MAIN FEATURES
1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials. 2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand. 3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving. 4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould. 5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
